CLOSED CIRCUIT TELEVISION(CCTV)
Closed-circuit television (CCTV) is the use of video cameras to transmit a signal to a specific place, on a limited set of monitors. It differs from broadcast television in that the signal is not openly transmitted, though it may employ point to point (P2P), point to multipoint, or mesh wireless links. Though almost all video cameras fit this definition, the term is most often applied to those used for surveillance in areas that may need monitoring such as banks, casinos, airports, military installations, and convenience stores. Videotelephony is seldom called "CCTV" but the use of video in distance education, where it is an important tool, is often so called.
1 UNIT PANACOM DVR 4 CHANNELS
4 SETS CAT5e UTP CABLE WITH 20m EACH SET
1 PC. MOUSE FOR DVR
1 PC. REMOTE FOR DVR
1 PC. CD INSTALLER FOR DVR
I'm a paragraph. Click here to add your own text and edit me. It’s easy. Just click “Edit Text” or double click me and you can start adding your own content and make changes to the font.
Feel free to drag and drop me anywhere you like on your page. I’m a great place for you to tell a story and let your users know a little more about your services.

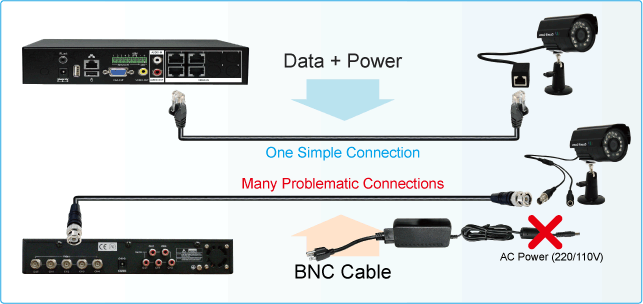

UTP cable streams power and data
■ Power-and-Data (PoE) integration in-system and camera by UTP cable.
■ Real-time H.264 video compression.
■ Quick backup to USB device.
■ Real-time recording and live viewing in high resolution.
■ Web Viewer for Remote Access and Control.
■ Fan-less system delivers a virtually silent operation.
■ 3G Mobile Viewing and Multiple Email notification.
■ 4 Camera Sets:
Day & Night IR cat5 camera, camera bracket, Cat5 cable.
■ Accessories:
AC-DC power adapter and cord for main unit, mouse, and CD manual.
SPECIFICATIONS
Models 4Ch 8Ch
VIDEO
System NTSC/PAL (Auto Detection)
Compression H.264
Input Cat5 (RJ45 x 4) Cat5 (RJ45 x 8) Optional
Output Video Out(RCA) x 1, VGA x 1
Display Frame Rate 120/100 fps 240/200 fps
Display Resolution 720 x 480 / 720 x 576 (NTSC / PAL), VGA: 1280 x 1024
Display Mode 1 / 4 / Sequence / PIP 1 / 4 / 8 / 1+7 / Sequence / PIP
AUDIO
Audio In / Out 1 / 1
RECORDING / PLAYBACK
Recording Resolution(NTSC / PAL) D1: 720x480 / 720x576, Half D1: 720x240 / 720x288,
CIF: 360x240 / 360x288
Recording Rate
(NTSC / PAL) D1: 60/50 fps
Half D1:120/100 fps
CIF: 120/100 fps D1: 60/50 fps
Half D1:120/100 fps
CIF: 240/200 fps
Recording Mode Time (Continuous) / Motion Detection / Sensor / Motion & Sensor
Playback Search by Time / Event / Calendar
SENSOR / ALARM
Sensor / Alarm 4 / 1(Optional)
STORAGE / BACKUP
Storage Support SATA HDD x 1
Backup Device USB Stick
CONNECTOR
USB USB 2.0 Port x 1
Mouse USB Mouse Port x 1
IR Extender IR Jack and Cable (Optional)
OSD / CONTROL
GUI / Control Interface YES / Mouse, Keypad, IR Remote Controller(Optional)
Multilingual Menu YES
Access Authentication YES
Digital Zoom Yes, 1x~8x, Both in Live Mode & Playback Mode
PIP YES, ON/OFF
Channel Swap Yes, via Mouse Drag-and-Drop
PTZ control Yes, RS485, Via Mouse or Keyboard
Firmware Upgrade USB / Network
NETWORK
Network 10/100 Ethernet (RJ-45)
Network Protocol TCP/IP, Static IP, DHCP, PPPoE(ADSL), DDNS
Network Remote Client Program and IE Browser
Multilingual OSD YES
3G Mobile Viewing YES
E-mail Notification YES
OTHER INFO
Power Supply Input: AC100~240V 50/60Hz, Output: DC12V
Operating Temperature 5°C~45°C
Dimension (WxHxD cm) 21.4 x 4.4 x 23.7 cm
Security Camera
Pick-up Element 1/4" Sharp color CCD
Resolution 420 TV lines
Lux Sensitivity O LUX (IR ON)
Number of IR LEDs (850mm) 12 Units
IR Project Distance 10~15 Meters
Power Consumption 12V DC,150mA, 250mA (IR ON)
Accessories
Mouse Yes
IR Remote Controller Optional
Power Supply Unit Input: AC100~240V, 50/60Hz / Output: 1+4 DC12V
